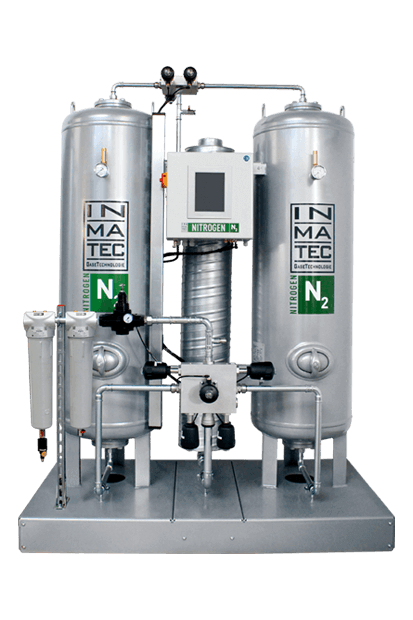

The models of the product line offer an all inclusive entry into the world of nitrogen generation. The PN generators also give priority to user-friendliness. The touch control panel and the connect option therefore ensure quick and straightforward access to all relevant operating values - on-site and from anywhere in the world.
The efficiency of on-site nitrogen generation is significantly increased by the PN technology that is used. The operating costs are reduced considerably thanks to the innovative flow and vortex technology. This is possible due to the use of less compressed air, which is needed to separate the nitrogen molecules from the oxygen molecules. Using EEC technology developed by INMATEC, more nitrogen can be generated with lower compressed air requirements.
Various options of the PN line such as the Auto Pure system and enrichment with hydrogen via a hydrogen catalyst enable adaptation to your needs.
PSA N2 generators from OXYMAT have the lowest energy consumption on the market. Our continuous R&D has resulted in power consumption down to 0.22 kW/Nm3 @ 95% purity
Our production is highly standardised. All materials are prepared according to offshore specifications. Piping is made from SS316L and surfaces are powder coated in C4 grade paint.
Our service team is standing by to assist you remotely 24/7. We carry out service worldwide and work with our many service partners across the globe to keep your nitrogen generation plant operational.
Multilingual touch control panel, low maintenance stainless steel valve technology, long life activated carbon molecular sieve, programmable control system, AutoPure technology.
| Nitrogen purity (%) | 95,0 | 97,0 | 98,0 | 99,0 | 99,5 | 99,9 | 99,99 | 99,995 | 99,999 | 99,9995 |
|---|---|---|---|---|---|---|---|---|---|---|
| Quality | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 5.0 | 5.5 | |||
| Residual O2 (PPM) | 1.000 | 100 | 50 | 10 | 5 | |||||
| PN 20 | 10,80 | 8,70 | 7,90 | 5,80 | 5,10 | 3,20 | 1,30 | 1,10 | 0,85 | |
| PN 30 | 16,50 | 13,40 | 12,00 | 9,00 | 7,70 | 4,80 | 2,40 | 1,80 | 1,30 | |
| PN 40 | 20,80 | 17,10 | 15,80 | 12,60 | 9,50 | 6,30 | 3,20 | 2,50 | 1,80 | |
| PN 60 | 31,20 | 26,60 | 23,70 | 18,90 | 14,20 | 9,50 | 4,80 | 3,60 | 2,40 | |
| PN 90 | 49,20 | 40,10 | 35,60 | 28,40 | 22,10 | 12,60 | 6,30 | 4,80 | 3,20 | |
| PN 150 | 84,00 | 59,90 | 53,80 | 46,60 | 37,80 | 23,20 | 11,70 | 8,80 | 5,80 | |
| PN 220 | 105,00 | 84,00 | 76,00 | 64,00 | 52,00 | 37,60 | 23,60 | 16,80 | 10,70 | |
| PN 270 | 141,00 | 117,00 | 98,00 | 80,00 | 68,00 | 48,20 | 27,90 | 21,00 | 14,20 | |
| PN 350 | 211,00 | 174,00 | 146,00 | 115,00 | 100,00 | 71,90 | 41,80 | 31,50 | 21,30 | |
| PN 500 | 260,00 | 215,00 | 188,00 | 143,00 | 120,00 | 86,00 | 50,50 | 38,50 | 26,50 | |
| PN 750 | 372,00 | 308,00 | 250,00 | 206,00 | 170,00 | 128,00 | 74,10 | 56,00 | 38,00 | |
| PN 1000 | 440,00 | 366,00 | 320,00 | 240,00 | 200,00 | 151,50 | 88,00 | 66,50 | 45,00 | |
| PN 1500 | 630,00 | 522,00 | 457,00 | 350,00 | 285,00 | 216,80 | 125,70 | 94,80 | 64,00 | |
| PN 2000 | 860,00 | 730,00 | 635,00 | 475,00 | 395,00 | 298,00 | 170,00 | 130,00 | 90,00 | |
| PN 2500 | 1050,00 | 915,00 | 800,00 | 610,00 | 510,00 | 375,00 | 215,00 | 165,00 | 112,00 | |
| PN 3000 | 1250,00 | 1040,00 | 910,00 | 700,00 | 570,00 | 430,00 | 250,00 | 188,00 | 125,00 |
